The differential is one of the least-discussed components in drivetrain maintenance — and one of the most expensive to repair when neglected. It allows your wheels to rotate at different speeds during turns (essential for controlled cornering) while distributing power from the driveshaft to the wheels. Regular differential fluid service protects these complex gears and bearings for the life of the vehicle. At Norm’s Auto Clinic in Coweta, Oklahoma, we service differentials on all rear-wheel-drive, four-wheel-drive, and all-wheel-drive vehicles.
Types of Differentials

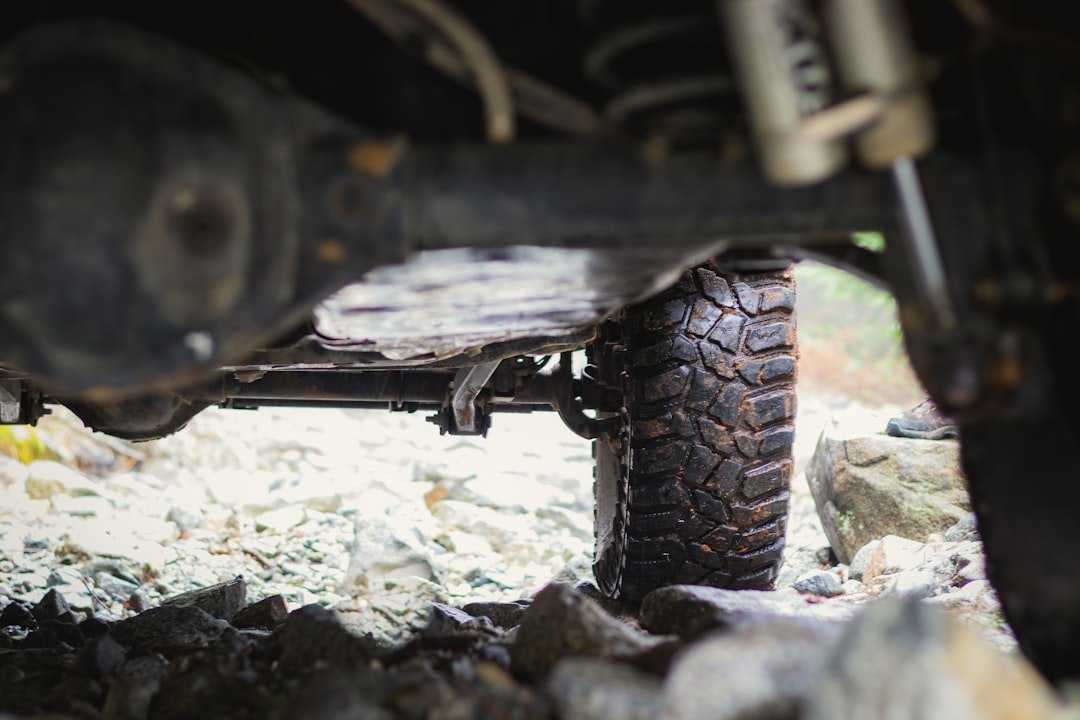

- Rear differential — On RWD trucks and SUVs (Ford F-150, Chevy Silverado, Toyota Tacoma, Ram 1500), the rear differential distributes power to both rear wheels. Service interval: typically 30,000–50,000 miles for normal use; 15,000–30,000 for towing or off-road use.
- Front differential — On 4WD trucks and part-time 4WD SUVs, the front axle contains a differential that activates in 4WD mode. Shares service interval with rear diff.
- Center differential / transfer case — On AWD vehicles and full-time 4WD systems, a center differential or transfer case distributes power between front and rear axles. Transfer case fluid is separate from differential fluid on many applications.
- Limited-slip differential (LSD) — Performance and towing-oriented differentials with clutch packs that provide torque bias; require a specific friction modifier additive in the fluid. Skipping the additive causes chattering during turns and LSD wear.
Why Differential Fluid Needs Service
Differential fluid (gear oil) lubricates the ring and pinion gears, side gears, spider gears, and carrier bearings under extremely high pressure and temperature. Over time, the fluid breaks down from heat, the EP (extreme pressure) additives deplete, and metal wear particles accumulate from normal gear contact. Contaminated fluid loses its lubricating and extreme-pressure protection properties, accelerating wear on expensive precision gears.
Oklahoma drivers who tow trailers, haul loads, or do any off-road driving should service differentials more frequently — heat and load accelerate fluid breakdown significantly. If your truck has been towing regularly and you’ve never had the differential fluid changed, it’s due regardless of mileage.
Signs of Differential Problems
- Whining or howling from rear/front — Worn ring and pinion gears produce a speed-dependent howl that changes with load (accelerating vs. coasting)
- Clunking during acceleration or direction change — Worn spider gears or carrier bearings
- Vibration at highway speed — May indicate differential bearing wear or driveshaft balance issue
- Chattering during low-speed turns (AWD/LSD) — Limited-slip clutch chatter from incorrect or depleted fluid; typically an easy fix with proper friction modifier
- Fluid leak under vehicle — Differential cover gasket or pinion seal leaking; requires immediate attention to prevent low-fluid operation
Differential Service at Norm’s
- Differential fluid drain and refill with correct viscosity and specification gear oil
- Friction modifier additive for limited-slip differentials
- Transfer case fluid service (AWD and 4WD vehicles)
- Differential cover gasket replacement if leaking
- Pinion seal replacement
- Bearing diagnosis and replacement for noise complaints
Protect your drivetrain with regular differential service. Norm’s Auto Clinic — 19 N. Broadway, Coweta, OK 74429. Call (918) 279-8100. Serving Coweta, Broken Arrow, Wagoner, Muskogee, and the greater Tulsa area.
